Material Lifting Elevator for Batching – Product Description & Key Selling Points
📝 Product Description

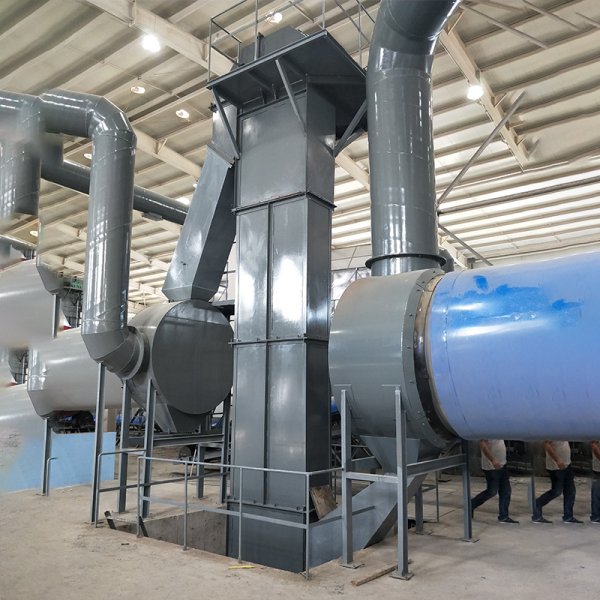

The Material Lifting Elevator is widely used for the lifting and transportation of materials in batching systems. It vertically elevates materials from lower to higher levels, making it ideal for powdery, granular, and other types of materials. With its compact structure and stable operation, this equipment is commonly found in material handling systems in industries such as cement, fertilizers, and grains.
⭐ Key Selling Points
1.Efficient Lifting: Equipped with high-quality motors and transmission systems, ensuring stable and efficient material lifting.
2.Versatile Application: Capable of handling a wide range of materials with varying particle sizes, densities, and flow properties.
3.Space-Saving Design: The vertical lifting design saves floor space, ideal for production environments with limited space.
4.Low Noise Operation: Optimized design reduces noise pollution during operation, providing a more comfortable working environment.
5.Easy Maintenance: Simple structure for easy maintenance and cleaning, ensuring long-term efficient performance.

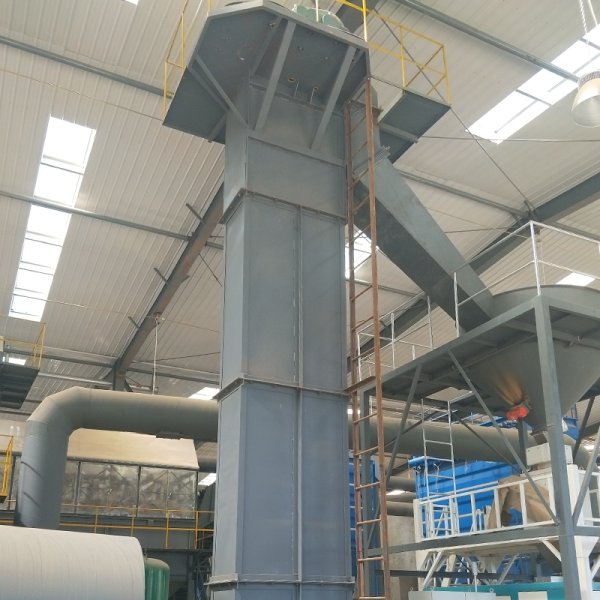

Bucket Elevator – Model HL250
Technical Specifications
Application: Vertical conveying of materials in industries such as chemical, mining, metallurgy, and grain processing.
Model: HL250
Bucket Width: 250 mm (customizable)
Motor Power: 3 kW (optionally 4 kW)
Reducer Model: ZQ250-23.34
Conveying Capacity: 5–13 m³/h
Round Steel Diameter × Pitch × Number of Links: 14 × 50 × 9
Bucket Spacing: 450 mm (customizable)
Sprocket Pitch Circle Diameter: φ440 mm
Bucket Speed: 1.25 m/s
Upper Sprocket Shaft Speed: 37.5 r/min
Maximum Particle Size of Conveyed Material: 30 mm
Material Description: Chains made of manganese steel; housing made of carbon steel.
Scope of Supply:
Includes upper housing (with motor and reducer), middle housing, lower housing, chains, buckets, user manual, and certificate of conformity.
Product Name:
Material Lifting Elevator for Batching
